Open RF Prototyping

Features

• Agile frequency source to ∼100 MHz.

• 0.058 Hz frequency resolution, 0.022° phase tuning resolution.

• Programmable modulus for exact frequency signal generation.

• Low power (∼ 100 mW).

• Phase noise ∼ –130 dBc at 1 kHz (10 MHz carrier with external AD9552 based 250 MHz reference)

• Linear frequency sweeping, 8 frequency and phase offset profiles.

• Optional anti-alias filter.

• Optional output amplifier.

• Design files are available at https://gitlab.com/dyadic-groups/rfblocks-hardware-modules/dds_2 (licensed under CERN-OHL-S v2)

Typical Performance Characteristics

A number of different board variants are referred to in this section. See Table 2 for a list of board variants currently recognized by the ad9913 class. (The ad9913.board_models class method returns a list of board variant models.)

Phase noise

Phase noise is measured using the 'phase detector' method as described here: Phase Noise Measurement with the HP11729C. The measurements were taken using an AD9913 module with a single anti-aliased output. The output level was maintained at approximately -14 dBm for all measurements.

Output response

The frequency response of the board output is determined primarily by a combination of the DAC output response and the anti-alias filter. The amplitude of DAC output follows the usual sinc response above about 60 MHz with the anti-alias filter adding some rolloff above about 70 MHz and then dropping off sharply at 100 MHz. The 27dB amplifer board variant also shows increased rolloff above about 50 MHz due to the limited response of the OPA847 at that gain.

Note that the response shown in Figure 3 is to 100 MHz (rather than 110 MHz as with the other response curves) in order to eliminate the effect of aliases.

Board Connector Configuration

Hardware Configurations

A number of board modifications are possible in order to change the hardware configuration. These are:

Table 2 lists some of the possible board variants. The board variants described here have calibration data included in the rfblocks Python ad9913 class.

Space requirements within the standard prototyping enclosures make it more convenient for the coaxial connection configuration to be MMCX connectors on all RF inputs and outputs (Refclk, Unfiltered, Filtered, and Sig Out). These are all low frequency connections and hence there are no performance penalties implied by doing this.

Applications Information

Figure 6 illustrates a minimal setup for controlling the DDS board. The board is connected to the atmega USB controller which is running the ECApp embedded control firmware. (The Pi Pico controller can also be used.) DDS board pins are described in Table 1.

The configuration in Figure 6 makes use of the Clock Generator to provide the DDS reference signal. This could be replaced either with an HMC833 synthesizer module or with a general purpose signal generator.

The rfblocks Python package provides the AD9913Controller class which is used to control the DDS board via the ad9913 device class. If the Clock Generator board is used as the DDS reference source then the AD9552Controller class is used to control that. The following code snippet shows an example. The board variant used in this example has the output amplifier configured with 20dB of overall gain. See Table 2 for a list of board variants currently recognized by the ad9913 class. (The ad9913.board_models class method returns a list of board variant models.)

> python
Python 3.8.5 (default, Sep  9 2020, 11:44:13)
[Clang 10.0.1 (clang-1001.0.46.4)] on darwin
Type "help", "copyright", "credits" or "license" for more information.
>>> from rfblocks import (
...     ad9913, AD9913Controller, ad9552, AD9552Controller,
...     create_serial
... )

>>> ser_device = '/dev/tty.usbmodem14101'
>>> ser = create_serial(ser_device)

>>> clk = ad9552('C7', 'B4', None, 10.0, refselect='B5')
>>> clk_ctl = AD9552Controller('ClkControl', clk)
>>> clk_ctl.initialize(ser)
True
>>> clk_ctl.channels['1'].state = ad9552.OutputState.ACTIVE
>>> clk_ctl.configure(ser)
True
>>> dds = ad9913('C5', 'B7', 'C4', board_model='20dB')
>>> dds_ctl = AD9913Controller('DDS_1', dds)
>>> dds_ctl.initialize(ser)
>>> dds_ctl.freq = 25.0
>>> dds_ctl.level = 256
>>> dds_ctl.state = ad9913.POWER_UP
>>> dds_ctl.configure(ser)

The code does the following:

1. Import the rfblocks AD9913Controller and ad9913 classes. In this example the AD9552Controller and ad9552 classes are also required for the control of the DDS clock reference.

2. Open the USB/RS-232 serial device which connects the host computer to the ECApp control firmware running on the microcontroller board.

3. Setup and initialize the DDS clock reference. The default output frequency of 250 MHz and output mode of LVPECL are correct for this application so we only need to ensure that clock channel 1 is active. The boolean value returned by both clk_ctl.initialize and clk_ctl.configure report the clock generator PLL lock status.

4. Create an instance of AD9913Controller and initialize the DDS board hardware. The default state after initialization will be an output frequency of 10 MHz and level of 512 (DAC code).

   Note that the AD9913 uses a 10-bit output DAC so the DAC code can range from 0 to 1023.

5. Set the controller output frequency to 25 MHz and the output level to 256 (DAC code). The call to the controller configure method pushes the new state to the board hardware and updates the DDS registers and output.

>>> dds_ctl.dbm = 0.0
>>> dds_ctl.configure(ser)
>>> dds_ctl.millivolts = 71
>>> dds_ctl.configure(ser)

>>> import json
>>>
>>> with open('measuredData/ad9913/ad9913-20dB-cal-data.json') as fd:
...     d = json.load(fd)
...
>>> lf = d['linear_fits']['5.0']
>>> lf_dict = { 0.0: [lf[0], lf[1]]}
>>> for fs in d['linear_fits']:
...     lf = d['linear_fits'][fs]
...     lf_dict[float(fs)] = [lf[0], lf[1]]
...
>>> dds_ctl.set_cal_data(lf_dict)

>>> dds = ad9913('C5', 'B7', 'C4', ps0='D0', ps1='D1', ps2='D2',
...              board_model='20dB')
>>> dds_ctl = AD9913Controller('DDS_1', dds)
>>> dds_ctl.initialize(ser)
>>> dds_ctl.freq = 20.0
>>> dds_ctl.level = 512
>>> dds_ctl.state = ad9913.POWER_UP
>>> dds_ctl.configure(ser)
>>> dds_ctl.sweep_start = 20.0
>>> dds_ctl.sweep_end = 30.0
>>> dds_ctl.sweep_type = ad9913.SweepType.FREQUENCY
>>> dds_ctl.sweep_ramp_type = ad9913.SweepRampType.RAMP_BIDIR
>>> dds_ctl.sweep_rising_step = 0.001
>>> dds_ctl.sweep_falling_step = 0.001
>>> dds_ctl.sweep_rising_rate = 256
>>> dds_ctl.sweep_falling_rate = 256
>>> dds_ctl.configure_sweep(ser)
>>> dds_ctl.start_sweep(ser)
...
>>> dds_ctl.stop_sweep(ser)
>>> dds_ctl.sweep_end = 40.0
>>> dds_ctl.configure_sweep(ser)
>>> dds_ctl.start_sweep(ser)
...
>>> dds_ctl.stop_sweep(ser)

>>> dds_ctl.direct_switch_enabled = True
>>> dds_ctl.profile_type = ad9913.SweepType.FREQUENCY
>>> dds_ctl.set_profile_freq(0, 25.0)
>>> dds_ctl.set_profile_freq(1, 35.0)
>>> dds_ctl.update_profile(ser, 0)
>>> dds_ctl.update_profile(ser, 1)
>>> dds_ctl.selected_profile = 0
>>> dds_ctl.configure_profile(ser)
>>> dds_ctl.selected_profile = 1
>>> dds_ctl.configure_profile(ser)
>>> dds_ctl.selected_profile = 0
>>> dds_ctl.configure_profile(ser)

>>> from rfblocks import write_cmd
>>> dds_ctl._ad9913.set_profile_control(
...     ad9913.ProfileControl.PINS)
>>> write_cmd(dds_ctl._ad9913.config_cfr1())
>>> cmd0 = 'M{},{:02X},{:02X}:'.format(dds.ps_port, dds.ps_mask, 0)
>>> cmd0
'MD,07,00:'
>>> cmd1 = 'M{},{:02X},{:02X}:'.format(dds.ps_port, dds.ps_mask, 1)
>>> cmd1
'MD,07,01:'
>>> write_cmd(ser, cmd1)

>>> write_cmd(ser, cmd0)

loop = asyncio.get_event_loop()
mask_str = '{:02X}'.format(self.ctl._ad9913.ps_mask)
tones = self.modulation_tones
rgen = random.Random()
self.ctl._ad9913.set_profile_control(ad9913.ProfileControl.PINS)
self.ctl._ad9913.set_direct_switch_mode_enable(True)
if self.modulation_type == ModulationType.FREQUENCY:
    self.ctl._ad9913.set_sweep_type(ad9913.SweepType.FREQUENCY)
else:
    self.ctl._ad9913.set_sweep_type(ad9913.SweepType.PHASE)
cmd = self.ctl._ad9913.config_cfr1()
await loop.run_in_executor(None, self.write_chan_cmd, cmd)
while self.modulating:
    symbols = [round(rgen.random() * (tones-1)) for i in range(100)]
    signal_str = ','.join(['{:02X}'.format(b) for b in
        [self.ctl._ad9913.ps_bits(s) for s in symbols]])
    cmd = 'M{},{},{}:'.format(port, mask_str, signal_str)
    await loop.run_in_executor(None, self.write_chan_cmd, cmd)

Reference Designs

• A DDS Based Signal Generator

• A Low Phase Noise DDS Signal Generator

Calibration Procedure

The steps taken to calibrate DDS board output signals are as follows:

1. Calibration measurements are taken using the ad9913-measure-cal-data.py script. The DDS under test should be connected as shown in Figure 8. Two assumptions are made here:

   1. The DDS board is supplied with a reference clock. See, for example, Figure 6 in which a clock generator module is used to supply the required 250 MHz clock.

   2. The DDS board is connected to a microcontroller board which is in turn connected to a host computer via a USB connection.

   The spectrum analyzer is controlled remotely using GPIB or Visa/LXI. The script source code can be viewed here: Measure calibration data.



2. The ad9913-measure-cal-data.py is now run to capture the DDS signal output voltages across a range of DDS DAC codes and frequencies. Here's an example command line:

   python scripts/ad9913-measure-cal-data.py -d /dev/cu.usbmodem14101 -U B7 -C C5

   The measurements are saved to a file as well as being echoed to stdout. An example of this output is shown below.

   5.0:  40.18 79.52 119.10 158.71 197.42 236.93 276.33 315.66 353.79 393.45 431.75 470.84 510.35 547.87 587.43 625.73
   10.0:  39.36 77.86 116.70 155.29 193.63 231.67 270.35 308.65 346.38 384.60 423.66 460.60 498.85 537.62 575.40 611.94
   15.0:  38.15 75.66 113.26 150.66 188.24 225.28 262.37 300.00 336.47 373.08 410.90 447.96 483.29 521.73 558.24 593.99
   20.0:  39.34 78.10 116.83 155.75 194.22 232.35 270.82 308.76 347.37 385.66 423.61 461.89 499.49 537.27 575.69 613.16
    ...
   95.0:  18.53 35.25 52.16 69.11 85.99 102.92 119.38 136.23 152.35 168.99 185.53 202.38 217.87 233.61 250.17 265.19
   100.0:  16.29 30.84 45.68 60.48 75.34 89.95 104.66 119.28 133.69 148.27 162.70 176.67 191.35 205.11 219.01 232.86

   Each line begins with the output signal frequency and is then followed by a list of the measured peak signal output voltages (in mV) for each of the DDS DAC codes configured.

3. The script now makes linear fits to the measured voltages for each of the test frequencies. This produces a slope and intercept for the linear fits at each of the test frequencies. Figure 9 shows example plots of the linear fits.



4. Plots of the calculated linear fit slopes and intercepts as a function of output signal frequency are made. Figure 10 shows an example of these plots.



   It's the functions plotted here that form the core of the calculation used to generate calibrated output levels in the AD9913Controller class. For more information see Calibrated output levels

5. The calibration slope and intercept data can now be included as an item in the ad9913 CAL_DATA dict. The format of the dict item is described in ad9913.cal_data. The following code shows an example of how the data can be extracted from the calibration data file:

   >>> import json
   >>> from pprint import pprint as pp
   >>>
   >>> with open('measuredData/ad9913/ad9913-20dB-cal-data.json') as fd:
   ...     d = json.load(fd)
   ...
   >>> lfs = []
   >>> cal_data_name = '20dB-2'
   >>> lf = d['linear_fits']['5.0']
   >>> lf_dict = { 0.0: [lf[0], lf[1]]}
   >>> for fs in d['linear_fits']:
   ...     lf = d['linear_fits'][fs]
   ...     lf_dict[float(fs)] = [lf[0], lf[1]]
   ...
   >>> pp(lf_dict)
   {0.0: [0.6013739809274393, 1.522515000001093],
    5.0: [0.6013739809274393, 1.522515000001093],
    10.0: [0.5898015666351346, 1.5392552500011525],
    15.0: [0.5728032952737382, 1.507987996086448],
    20.0: [0.5616700735284558, 1.8379037500017927],
    25.0: [0.5416191187949562, 1.576826250001273],
    30.0: [0.5340883423703072, 1.8014730000017325],
    35.0: [0.5301647238041223, 1.919015250001992],
    40.0: [0.5297908778832199, 1.9003730731542878],
    45.0: [0.5307727290072409, 2.1737304696323974],
    50.0: [0.532739564796775, 2.466679250003161],
    55.0: [0.5294871201736061, 2.655759750003534],
    60.0: [0.5143739634640143, 3.1962870000047605],
    65.0: [0.48885358570660564, 3.146362500004677],
    70.0: [0.4563410818010057, 3.2514990002529007],
    75.0: [0.42409794898771436, 3.4119032500052104],
    80.0: [0.3972877128054187, 3.5073298906843],
    85.0: [0.37823979549496733, 3.3779000000051207],
    90.0: [0.36362696530192085, 3.6423777500056844],
    95.0: [0.3516909167299737, 3.8765600635610893],
    100.0: [0.34216751368844056, 4.082412568570491]}
   >>> if cal_data_name not in ad9913.CAL_DATA:
   ...      ad9913.CAL_DATA[cal_data_name] = lf_dict


Design Notes

The core of the design is the AD9913 10-bit DDS. This is powered by separate regulators for the digital and analog supplies (U2, U3). To obtain the best performance from the AD9913 the internal PLL should be bypassed and the DDS clock taken directly from the reference input. The single ended reference input is converted to a differential signal using T1. Although the design has made provision for an onboard crystal this facility has not been tested.

The AD9913 makes use of a current output DAC. The output current is delivered as a balanced output via the two IOUT pins. This is converted to a single ended output using R10, R11, R12 and T2. The transformer T2 can be replaced by a 0 \(\Omega\) jumper for low frequency (down to DC) use. The DAC output is described in more detail below.

DDS output can be routed to either the unfiltered output or the 100 MHz elliptic filter by populating R13, R14, and R16 approriately with 0 \(\Omega\) jumpers. This is the unsplit configuration. Alternatively, the DDS signal can be split using a 6 dB resistive splitter by populating R13, R14, and R16 with 16.7 \(\Omega\) resistors. This is referred to as the split configuration.

The output of the 100 MHz elliptic filter may either be used directly by populating R27 or used as input to the output amplifier by populating R29. The output amplifer is an 'embedded' version of the opamp based IF amplifer which is described in more detail here: A Wideband, High Linearity IF Amplifier. A schematic of the amplifier as implemented on the DDS board is shown in Figure 12. In normal operation, an external 10V supply is connected to J7 (note that this supply should not exceed 12V).

Together with the filter, the gain of the output amplifier will determine the high frequency response of the DDS and is set using R19 and R23. Two possible gain settings are summarized in Table 3.

For other values of R23 and R19 the gain, G, can be calculated using:

The factor of 6dB appears in the gain calculation because the output of the OPA847 is split between the amplifier load (assumed to be 50 \(\Omega\)) and R21. Decreasing the amplifier gain below 20 dB decreases the phase margin. Gains less than about 15 dB may cause excessive peaking in the amplifier frequency response and increases the possibility of sustained oscillation.

When using the unsplit configuration an output amplifier gain of 20 dB is optimal. If the split configuration is used an output amplifier gain of 27 dB should be used. Increasing gains above these levels will result in appreciable signal compression at the higher limit of the DDS output amplitude. Also note that the higher output amplifier gains will limit the high frequency response.

The AD9913 uses 1.8V supplies and control signals must use voltage levels compatible with this. U4 is the level converter for control signals between the 3.3V input control lines and the 1.8V control lines required by the AD9913. The output enable for the level converter is made available as one of the external control lines. In general this can be tied to 3.3V.

DAC output

The AD9913 uses a current output DAC. The reference current for the DAC is set by R9 and the full scale DAC output current will scale as follows:

\begin{equation*} I_{out}(x, R_9) = {0.0206 \above 1pt R_9} \times(1+x) \end{equation*}

with \(x\) being the value of the DAC gain control (bits 9:0 in register 2). Using a value of R9 = 4.64K and \(x =\) 0x3FF, the maximum full scale DAC output current will be 4.55 mA

The primary winding of T2 will usually see a 50 \(\Omega\) load either connected to the output J3/J4 (if that is used) or as the input impedance of a resistive splitter made up of R13, R14, R16 (see Figure 3). Since T2 is 1:1 the load seen by the secondary is also 50 \(\Omega\). With the ground point midway on the secondary, the IOUT side of the DAC output will see a parallel combination of the 25 \(\Omega\) from the T2 secondary, R10, and one half of R11 (since it will have a virtual ground in the middle). A similar calculation can be done for the other leg of the DAC output. R11 is optional and for the prototype builds is not populated. With R10 and R12 set at 100 \(\Omega\), this results in approximately 150 mV peak to peak or about 50 mV (-13 dBm). This is well within the 400 mV compliance range of the AD9913 DAC.

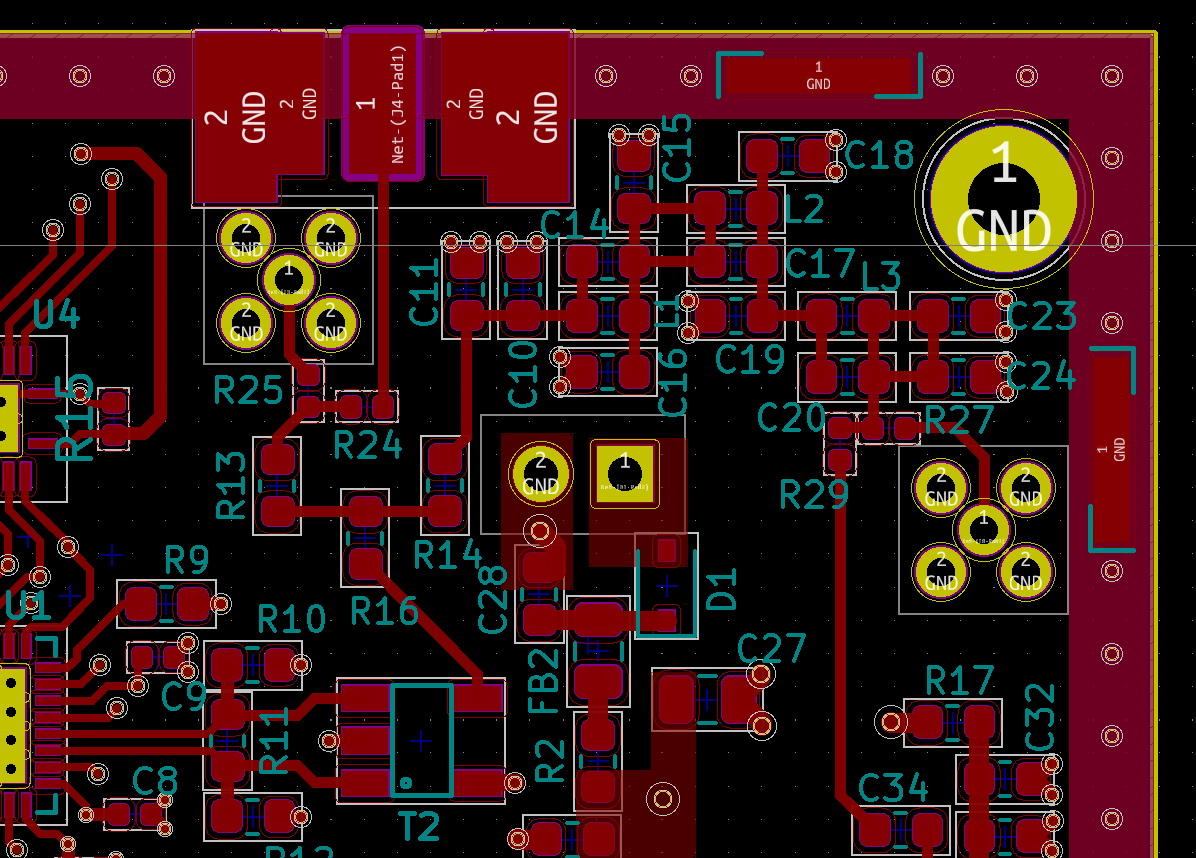

Given that the DAC output splitter (R13, R14, R16) is populated, the available power on J3/J4 will be approximately -19 dBm. Likewise the available power at the input of the DAC output amplifier (after the low pass filter) will be approximately -19 dBm. With the optional output amplifier in use, the output level at J5/J6 will be 6 dBm (assuming an amplifer gain of 25).

The low frequency response will be determined by T2. The MABAES0060 data sheet specifies the insertion loss down to 300 kHz. However, direct measurement indicates that the low frequency response drops off by 3 dB at about 50 kHz.

The output response can be extended down to DC by removing T2 and inserting a 0 \(\Omega\) link between R10 and R16. However, using the single-ended output of the DAC in this manner will cause degradation in the common-mode rejection and increase second-order distortion products, compared to a differential operating mode.
